YE3 Series Super Ultra High Efficiency 3-Phase Asynchronous Motors

Score

Sold: 0 Question And Answer 0

MOQ: 1 PCS

Note: If you have any questions,please contact us

1.YE3/YE4 -series motor is totally enclosed squirrel-cage rotor ultra high efficiency, super ultra high efficiency three-phase asynchronous motor
2.The power rating and assembling dimension of YE3/YE4 -series motor is in according with IEC international standard
3.The rated voltage of this Motor is 380 V, rated frequency 50 Hz. The altitude of the motor should not exceed 1000 m;
3.The Motor can be derived according to the user's requirements.
4.The different voltage, different frequency . Biaxial stretching. Dry (wet) special requirements such as tropical type motor.

YE3 Series Motor

More Products Share Factory

Consult Immediately Batch Inquiry

Shanxi Electric Machinery Manufacturing Co., Ltd

Since:

1952

Type	Output kw	Electric Current A	Speed r/min	Eff %	Power Factor	Llcked Torque/ Rared Torque	Max. Torque/ Rared Torque	Locked Current/ Rared torque	Noise dB(A)	Vibra tion mm/s	Weight kg
YE3--132S1-2	5.5	10.6	2900	89.2	0.88	2.2	2.3	8	79	1.3	69
YE3--132S2-2	7.5	14.2		90.1	0.89			7.8	79	1.3	74
YE3-160M1-2	11	20.6		91.2	0.89			7.9	81	1.8	125
YE3-160M2-2	1.5	27.9		91.9	0.89			8	81		135
YE3-160L-2	18.5	34.2		92.4	0.89			8.1	81		153
YE3-180M-2	22	40.5	2940	92.7	0.89			8.2	83		183
YE3-200L1-2	30	54.9	2950	93.3	0.89			7.5	84		245
YE3-200L2-2	37	67.4	2950	93.7	0.89			7.5	84		259
YE3-225M-2	45	81.7	2970	94.0	0.89			7.6	86		323
YE3-250M-2	55	99.6		94.3	0.89			6.9	89		367
YE3-280S-2	75	135.2		94.7	0.89	2.0	2.2	7.0	91		559
YE3-280M-2	90	161.7		95.0	0.89			7.1	91		602
YE3-315S-2	110	195.1	2980	95.2	0.90			7.1	92	2.3	873
YE3-315M-2	132	233.6		95.4	0.90			7.1	92		992
YE3-315L1-2	160	279.4		95.6	0.91			7.1	92		1122
YE3-315L2-2	200	348.6		95.8	0.91			7.1	92		1203
YE3-355M1-2	220	383.4	2985	95.8	0.91			7.1	100		1804
YE3-355M2-2	250	435.7		95.8	0.91			7.1	100		1905
YE3-355L1-2	280	488.0		95.8	0.91			7.1	100		2008
YE3-355L2-2	315	537.0		95.8	0.91			7.1	100		2203
YE3-3551-2	355	618.7		95.8	0.91	1.6		7.2	104		2509
YE3-3552-2	375	653.6		95.8	0.91	1.6			104		2809

Synchronous speed 1500rmin 380v 50Hz

Type	Output kw	Electric Current A	Speed r/min	Eff %	Power Factor	Llcked Torque/ Rared Torque	Max. Torque/ Rared Torque	Locked Current/ Rared torque	Noise dB(A)	Vibration mm/s	Weight kg
YE3-132S-4	5.5	11.4	1440	89.6	0.82	2	2.3	7.5	71	1.3	69
YE3-132M-4	7.5	15.2	1440	90.4	0.83	2		7.4	71	1.3	84
YE3-160M-4	11	21.5	1460	91.4	0.85	2.2		7.5	73	1.8	123
YE3-160L-4	15	28.8	1460	92.1	0.86			7.5	73		145
YE3-180M-4	18.5	35.3	1470	92.6	0.86			7.7	76		178
YE3-180L-4	22	41.8		93	0.86			7.8	76		199
YE3-200L-4	30	56.6		93.6	0.86			72	76		259
YE3-225S-4	37	69.6	1480	93.9	0.86			7.3	78		309
YE3-225M-4	45	84.4		94.2	0.86			7.4	78		379
YE3-250M-4	55	102.7		94.6	0.86			7.4	79		396
YE3-280S-4	75	136.3		95	0.88			6.7	80		532
YE3-280M-4	90	163.2		95.2	0.88			6.9	80		607
YE3-315S-4	no	199.1		95.4	0.88		2.2	6.9	88	2.3	909
YE3-315M-4	132	238.4	1490	95.6	0.88			6.9	88		1064
YE3-315L1-4	160	285.1		95.8	0.89			6.9	88		1087
YE3-315L2-4	200	355.7		96	0.89			6.9	88		1193
YE3-355M1-4	220	386.9	1480	96	0.9			6.9	95		1582
YE3-355M2-4	250	439.6		96	0.9			6.9	95		1564
YE3-355L1-4	280	492.4		96	0.9			6.9	95		1735
YE3-355L2-4	315	553.9		96	0.9			6.9	95		1736
YE3-3551-4	355	624.2		96	0.9	1.7		6.5	95		2003
YE3-3552-4	375	659.4		96	0.9	1.7		6.5	95		2306

Synchronous speed 1000rmin 380v 50Hz

Type	Output kw	Electric Current (A)	Speed r/min	Eff %	Power Factor	Llcked Torque/ Rared Torque	Max. Torque/ Rared Torque	Locked Current/ Rared torque	Noise dB(A)	Vibration mm/s	Weight kg
YE3-132S-6	3	7.2	960	85.6	0.74	2.0	2.1	62	69	1.3	68
YE3-132M1-6	4	9.5	960	86.8	0.74	2.0	2.1	6.8	69	1.3	77
YE3-132M2-6	5.5	12.7	960	88	0.75	2.0	2.1	7.1	69	1.3	89
YE3-I60M-6	75	16.4	970	89.1	0.78	2.1	2.1	6.7	70	1.3	122
YE3-160L-6	11	23.4	970	90.3	0.79	2.1	2.1	6.9	70	1.8	145
YE3-180L-6	15	30.9	970	91.2	0.81	2.0	2.1	72	73	1.8	193
YE3-200L1-6	18.5	37.8	970	91.7	0.81	2.1	2.1	7.2	73	1.8	233
YE3-200L2-6	22	44.2	970	92.2	0.82	2.1	2.1	7.3	73	1.8	246
YE3-225M-6	30	60.6	990	92.9	0.81	2.0	2.1	7.1	74	1.8	326
YE3-250M-6	37	71.7	990	93.3	0.84	2.1	2.1	7.1	76	1.8	375
YE3-280S-6	45	84.8	990	93.7	0.86	2.1	2.0	7.2	78	1.8	484
YE3-280M-6	55	103.3	990	94.1	0.86	2.1	2.0	7.2	78	1.8	536
YE3-315S-6	75	141.7	990	94.6	0.85	2.0	2.0	6.7	83	1.8	889
YE3-315M-6	90	1715	990	94.9	0.84	2.0	2.0	6.7	83	1.8	1017
YE3-315L1-6	110	206.8	990	95.1	0.85	2.0	2.0	6.7	83	2.3	1053
YE3-315L2-6	132	244.4	990	95.4	0.86	2.0	2.0	6.7	83	2.3	1148
YE3-355M1-6	160	292.3	992	95.6	0.87	2.0	2.0	6.7	85	2.3	1459
YE3-355M2-6	180	337.6	992	95.7	0.87	2.0	2.0	6.7	85	2.3	1557
YE3-355M3-6	200	364.6	992	95.8	0.87	2.0	2.0	6.7	85	2.3	1599
YE3-355L1-6	220	401	992	95.8	0.87	2.0	2.0	6.7	85	2.3	1656
YE3-355L2-6	250	455.7	992	95.8	0.87	2.0	2.0	6.7	85	2.3	1674
YE3-3552-6	315	574.2	992	95.8	0.87	2.0	2.0	6.8	83	2.3	1684

YE3 Series Super Ultra High Efficiency 3-Phase Asynchronous Motors.png

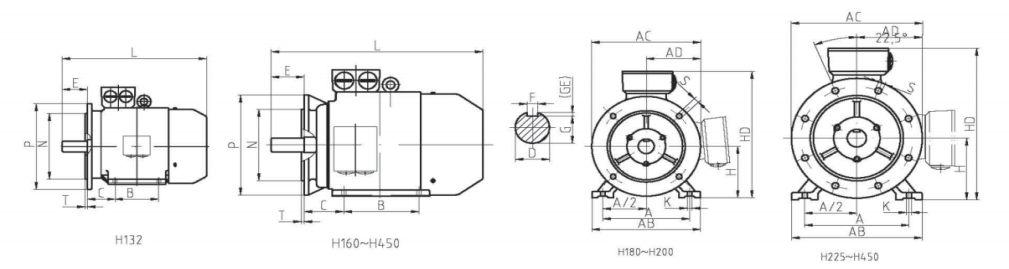

Frame	poles	Installation dimension and tolerance																	Overall dimensions
		A	B	C		D		E		F		Ga		H		Kb			AB	AC	AD	HD	L
132S	2〜6	216	140	89	12	38	+0.018 +0.002	80	±0.37	10	0-0.036	33	0-0.20	132	0- 0.5	12	add 0.43	Φ1.0 Ⓜ	270	275	210	345	510
132M			178							10													560
160M		254	210	108	±3.0	42	+0.018	110	±0.43	12	0-0.043	37		160		14.5		Φ1.2Ⓜ	320	330	255	420	670
160L			254				+0.002																700
180M		279	241	121		48	+0.018 +0.002			14		42.5		180					355	380	280	455	740
180L			279																				790
200L		318	305	133		55	+0. 030 +0. 011			16		49		200		18.5	+0.052		395	420	305	505
225S	4	356	286	149	±4.0	60		140	±0.50	18		53		225					435	470	335	560	830
	2		311			55		110	±0.43	16		49											825
225M	4、6		311			60		140	±0.50	18		53											855
250M	2	406	349	168										250		24		Φ2.0Ⓜ	490	510	370	615	915
	4、6					65						58
280S	2	457	368	190										280	0- 1.0				550	580	410	680	985
	4、6					75				20	0-0.052	67.5
280M	7		419			65				18	0-0.043	58											1035
	4、6					75				20	0-0.052	67 5

315S	7	508	406	216		65				18		58		315		28			635	645	530	845	1180
	4、6					80		170		22	0-0.043	71											1290
315M	2		457			65		140		18		58											1210

	4、6					80		170		22		71											1320
											0-0.052
315L	2		508			65		140		18	0-0.043	58											1210
	4、6					85		170		22	0-0 052	71											1320
355M	2	610	560	254		75		140		20		67.5		355					730	710	655	1010	1500
	4、6					95	+0.035	170		25		86											1530
							+0.013
355L	2		630			75	+0.030 , +0.011	140		20		67.5											1500
	4、6					95		170	±0.57	25		86											1530
400M	4~8	686		280		110	+0 .035 +0.013	210		28		100		400		35	+0.062		806	856		1078	1730
400L			710			120				32	0-0.062	109											1920
450		800	1000			130	+0.040, +0.015	250				119		450		42		Φ2.5Ⓜ	990	1075		1409	2500

YE3 Series Super Ultra High Efficiency 3-Phase Asynchronous Motors 2.png

Frame	Flange	poles	Installation dimension and folerance																													Overall dimensions
			A	B	c		D		E		F		Ga		H		K			M	N		A	Rd		S			T		holes	AB	AC	AD	HD	L
132S	FF265	2~6	216	140	89	±2.0	38	+0.018；	80	±0.37	10	0-0.036	33	0- 0.2	132	0 -0.5	12	0.43	Φ1.0 Ⓜ	265	230	0.016 ; 0.013	300	0	±2.0	14.5	0.43	Φ1.2 Ⓜ	4	0- 0.12	4	270	275	210	345	510
132M				178				+0.002																												560
160M	FF330		254	210	108	±3.0	42		110	±0.43	12	0-0.043	37		160		14.5		Φ1.2 Ⓜ	300	250		350		±3.0	18.5	0.52		5			320	330	255	420	670
160L				254																																700
180M			279	241	121		48				14		42.5		180																	355	380	280	455	740
180L				279																																790
200L	FF350		318	308	133		55	+0.030; +0.011			16		49		200		18.5	0.52		350	300	±0.016 0.013	400									395	420	305	505
225S	FF400	4	356	286	149	±4.0	60		140	±0.50	18		53		225					400	350	±0.018	450		±4.0						8	435	470	335	560	830
225M		2		311			55		110	±0.43	16		49																							825
		4、6					60		140	±0.50	18		53																							855
250M	FF500	2	406	349	168										250		24		Φ2.0 Ⓜ	500	450	±0.020	550									490	510	370	615	915
		4、6					65						58
280S		2	457	368	190										280	0 -1.0																550	580	410	680	985
		4、6					75				20	0.-0.052	67.5
280M		2		419			65				18	0-0.043	58																							1035
												0.-0.052
		4、6					75				20		71
												0-0.043
315S	FF600	2	508	406	216		65				18	0.-0.052	67.5		315		28			600	550	±0.022	660			24		Φ2.0 Ⓜ	6	0- 0.15		635	645	530	845	1180
		4、6					80		170		22		71																							1290
315M		2		457			65		140		18		58																							1210
		4					80		170	±.57	22		71																							1320
315L		2		508			65		140	±0.50	18	0-0.052	58																							1210
		4					80		170	±0.57	22		71																							1320
355M	FF740	2	610	560	254		75		140	±0.50	20		67 5		355					740	680	±0.025	800									730	710	655	1010	1500
		4					95	+0.035; -0.013	170	±0.57	25		86																							1530
355L		2		630			75	+0.030; -0.011	140	±0.50	20		67.5																							1500
		4、6					95	+0.035; -0.013	170	±0.57	25		86																							1530
400M	无	4~8	686		280		110		210		28		100		400		35	0.62		940	880	±0.028	1000			28				0- 0.12		606	1000		1078	1911
40OL				710			120				32	0-0.062	109
450			800	1000			130	+0.040; +0.075	250				119		450		42			1080	1000		1150									990	1150		1409	2500

YE3 Series Super Ultra High Efficiency 3-Phase Asynchronous Motors 3.png

			Installation dimension and tolerance																				Overall dimensions
Frame	Flange	poles	D		E		F		Ga		M	N		Pc	Rd		Sb			T		holes	AC	AD	HF	L
180M	FF300	2~6	48	+0.018 +0.002	110	±0.43	14	0-0.043	42.5	0-0.20	300	250	±0.016 -0.013	350	0	±3.0	18.5	0.52	Φ1.2 Ⓜ	5	0-0.12	4	380	280	500	800
180L																										850
200L	FF350		55	+0.030; -0.011			16		49		350	300	±0.016	400									420	305	550	860
225S		4	60		140	±0.50	18		53		400	350	±0.018	450		±4.0						8	470	335	610	920
225M	FF400	2	55		110	±0.43	16		49																	915
		4、6	60			±0.50	18		53																	945
250M		2									500	450	±0.20	550									510	370	650	1020
		4, 6	65						58
280S	FF500	2			140																		580	410	720	1110
		4、6	75				20	0-0.052	67.5
280M		2	65				18	0-0.043	58																	1150
		4、6	75				20	0-0.052	67.5
315S		2	65				18	0-0.043	58		600	550	±0.022	660			24		Φ2.0 Ⓜ	6	0-0.15		645	530	900	1300
		4. 6	80				22	0-0.052	71												0-0.16					1420
315M	FF600	2	65				18	0-0.043	58												0-0.17					1330
		4、6	80		170		22	0-0.052	71												0-0.18					1450
315L		2	65		140		18	0-0.043	58												0-0.19					1330
		4、6	80		170		22	0-0.052	71												0-0.20					1450
355M		2	75		140		20		67.5		740	680	±0.025	800							0-0.21		710	655	1010	1640
	FF740	4、6	95	+0.035 -0.013	170		25		86												0-0.22					1670
355L		2	75	+0030 -0 011	140		20		67.5												0-0.23					1640
		4, 6	95	+0.035 -0.013	170		25		86												0-0.24					1670
400M		4~8	110		210		28	0-0.052	100		940	880	±0.028	1000			28				0-0.12		1000		1078	2200
400L		4~8	120			±0.57	32	0-0.062	109
450		4~8	130	+0.040 +0.015	250				119		1080	1000		1150									1150		1409	2800

YE3 Series Super Ultra High Efficiency 3-Phase Asynchronous Motors 4.png

Frame			Installation dimension and tolerance																				Overall dimensions
	Flange	poles	D		E		F		Ga		M	N		J	Rd		Sb			T		holes	AC	AD	HF	L
132S	FF265	2~6	38	+0.018 -0.002	80	±0.37	10	0 -0.036	33	0 -0.20	265	230	0.016；0.013	300	0	±2.0	14.5	add 0.43	Φ1.2 Ⓜ	4	0 -0.12	4	275	210	315	510
