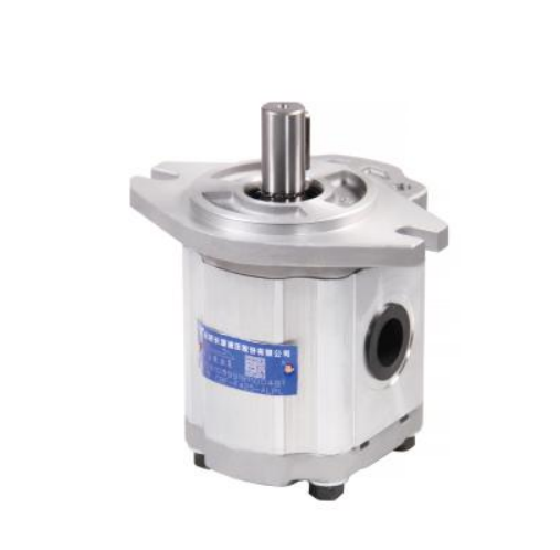

Hydraulic Gear Pumps CBF-*4

Score

Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

1.Using high-strength aluminum alloy material, light weight, easy to install
2.Axial clearance automatic compensation mechanism, radial hydraulic balance, maintain the high volumetric efficiency of the oil pump
3.Use self-lubricating bearings to improve the load capacity of the pump
4.The connection forms of the inlet and outlet ports are available with thread, flange, etc.
5.Input shaft connection form can choose flat key, rectangular spline

CBF-*4

More Products Share Factory

Consult Immediately Batch Inquiry

Hefei Changyuan Hydraulic Co., Ltd

Since:

1966

Model	Nominal displace ment (mL/r)	Pressure (MPa)		Speed (r/min)			Volum etric Efficien cy (≥%)	L1	L	Inlet		oulet		Weight (kg)
		Rated	Max.	Min.	Rated	Max.				D	A	D	A
CBF-F410-AL**	10	20	25	800	2500	3000	92	55	114	M22*1.5	50	M18*1.5	45	3.2
CBF-F412.5-AL**	12.5							56.3	116.5					3.3
CBF-F414-AL**	14							57.3	118.5					3.4
CBF-F416-AL**	16							58.3	120	M27*2		M22*1.5		3.5
CBF-F418-AL**	18			600				59.5	123					3.6
CBF-F420-AL**	20						93	60.5	125					3.7
CBF-F425-AL**	25							63.5	131.5	M33*2		M27*2		3.8
CBF-F432-AL**	32							67.5	139					4.1
CBF-F440-AL**	40	16	20					72	148					4.4
CBF-F450-AL**	50							77.5	159					4.7

Hydraulic gear pumps(motors) order code

CBF-*4 GEAR PUMP .png

①Product code

②Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted

③Number of tooth 2 3 4 5 6(ome models can be omitted)

④Nominal displacement(mL/r)

⑤Mounting A Oval B Square C Rectangle T Special

⑥Joining port L Screw F Flange Special

⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end

⑧Rotation L Left R Right S bi-direction

⑨Pressure grade2 3 4

⑩Solenoid valve function O normal open C normal close(Omited)
