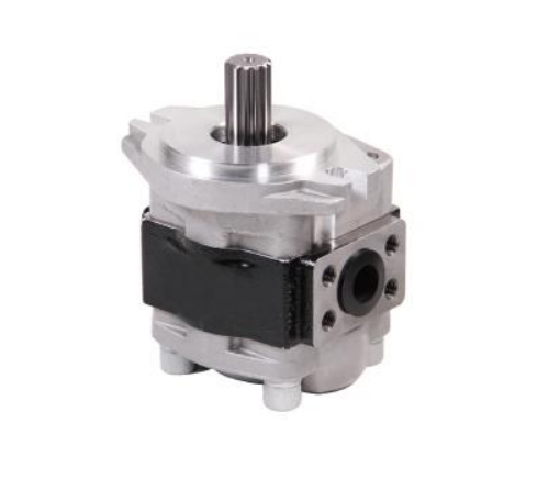

Hydraulic Gear Pumps CBHZA-F
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.Adopt asymmetrical tooth profile dual-module gears, axial automatic compensation structure, radial hydraulic balance, to ensure high volumetric efficiency and high reliability of the oil pump
- 2.Adopting high-strength wear-resistant cast iron material with strong bearing capacity
- 3.Use self-lubricating bearings to improve the load capacity of the pump
- 4.High volumetric efficiency can be maintained at 600rpm
- 5.The oil inlet and outlet can be selected from back in and out, back in and side out, side in and side out, etc. (customization required)
- 6.Input shaft connection form can choose flat key, rectangular spline, SAE spline, involute spline
- CBHZA-F
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
Outline Dimension
Specification（Roation: Right）
| Model | Nominal displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volumetric Efficiency (≥%) | L1 | L | inlet | outlet | Weight (kg) | |||||||
| Rated | Max. | Min. | Rated | Max. | D | a | b | D | a | b | ||||||
| CBHZA-F23--AFΦ** | 23 | 20 | 25 | 600 | 2500 | 3000 | 92 | 60 | 117 | 25 | 26.2 | 52.4 | 20 | 22.2 | 47.6 | 4.4 |
| CBHZA-F25--AF** | 25 | 62 | 120 | 4.7 | ||||||||||||
| CBHZA-F26.5--AF** | 26.5 | 62.5 | 122 | 4.8 | ||||||||||||
| CBHZA-F28.2--AF** | 28.2 | 63.5 | 124 | 4.9 | ||||||||||||
| CBHZA-F30--AF** | 30 | 64.5 | 126 | 5.1 | ||||||||||||
| CBHZA-F32--AF** | 32 | 65.5 | 128 | 5.3 | ||||||||||||
| CBHZA-F36--AF** | 36 | 68 | 133 | 5.7 | ||||||||||||
| CBHZA-F40--AF** | 40 | 70.5 | 138 | 28 | 6.1 | |||||||||||
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
