CBKP Double Gear Pump
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.The CBKP double gear pump shell is made of high-strength aluminum alloy material, liquid extrusion molding process, strong load-bearing capacity
- 2.Axial clearance automatic compensation mechanism, radial hydraulic balance, maintain the high volumetric efficiency of the oil pump
- 3.High-strength roller bearings, improve the anti-overload and anti-pollution ability of the oil pump
- 4.Input shaft connection form can choose flat key, rectangular spline, involute spline, SAE spline
- CBKP Double Gear Pump
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
CBKP Double Gear Pump Outline Dimension
Specification of CBKP Double Gear Pump（Roation: Left）
| Nominal displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volumetric Efficiency (≥%) | A | B | C | M | N | D | E | F | |||
| Rated | Max. | Min. | Rated | Max. | ||||||||||
| 25 | 20 | 25 | 500 | 2000 | 2500 | 90 | 109 | 67 | 45 | 52 | 26 | Φ25 | 28 | 34 |
| 32 | 112 | 68 | ||||||||||||
| 40 | 116 | 73 | ||||||||||||
| 50 | 120.5 | 76 | 49 | 30 | ||||||||||
| 63 | 126 | 80 | 55 | 36 | ||||||||||
| 80 | 135 | 86 | 58 | 60 | 30 | Φ32 | 40 | 37 | ||||||
| 100 | 145 | 123 | 50 | 41.5 | ||||||||||

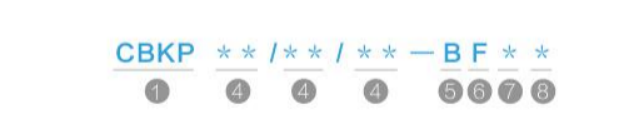

Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
