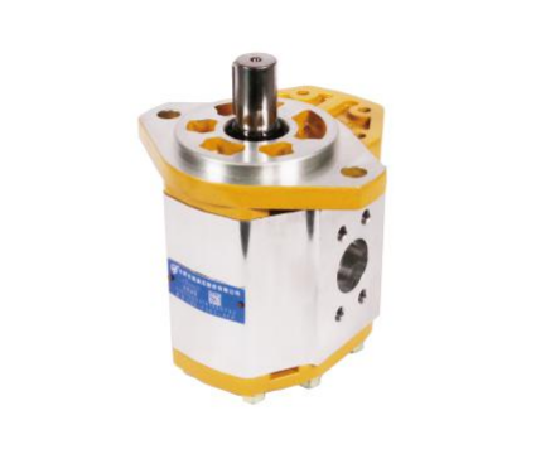

HCHC Hydraulic Gear Pump CBQ-*5
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.Application of high-strength aluminum alloy material, light weight, easy to install
- 2.Axial clearance automatic compensation mechanism, radial hydraulic balance, maintain the high volumetric efficiency of the oil pump
- 3.Use self-lubricating bearings to improve the load capacity of the pump
- 4.The connection forms of the inlet and outlet ports are available with thread, flange, etc.
- 5.Input shaft connection form can choose flat key, rectangular spline
- CBQ-*5
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
Gear Pump CBQ-*5 Outline Dimension
Gear Pump CBQ-*5 Specification（Roation: Right）
| Model | Nominal displacement (mL/r) | Pressure (MPa) | Speed (r/min) | Volumetric Efficiency (≥%) | L1 | L | D | Weight (kg) | ||||||
| Rated | Max. | Min. | Rated | Max. | Inlet | oulet | Inlet | oulet | ||||||
| CBQ-G520-*F** | 20 | 25 | 28 | 600 | 2500 | 3000 | 93 | 62.5 | 129 | 23
| 15
| 25 | 20 | 5.7 |
| CBQ-G525-*F** | 25 | 64.5 | 133 | 6.0 | ||||||||||
| CBQ-G532-*F** | 32 | 67 | 138 | 30 | 6.3 | |||||||||
| CBQ-G540-*F** | 40 | 69.5 | 143 | 35 | 6.8 | |||||||||
| CBQ-G550-*F** | 50 | 73 | 150 | 25 | 7.3 | |||||||||
| CBQ-G563-*F** | 63 | 20 | 25 | 2000 | 2500 | 77.5 | 159 | 8.0 | ||||||
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
