AK06 Automatic Lubrication Monitor Built-in Monitor
MOQ: 10
Note: If you have any questions,please contact us
- This monitor is designed with function against misoperation
- Press and hold both "▲" and " ▼" for 4s and above and press the "E" to enter into the mode of setting. It is automatically locked after exiting the mode of setting.
- AK06
Zhengzhou Autol Technology Co.,Ltd.
Since:
2005
Product Description
Important information:
Press and hold both "▲" and " ▼" for 4s and above and press the "E" to enter into the mode of setting. It is automatically locked after exiting the mode of setting.
Press briefly the "E" to enter into the setting interface and press briefly in turn the "E" to select the setting items “1P, 2P, 3P and 4P”. Confirmed.
1P: Press briefly the "▲" or " ▼ " to set the off time（1 to 30 h, customizable）;
2P: Set the number of pulses to be detected (0 to 99 min, customizable)；
3P: Press briefly the "▲" or " ▼ " to set the operation time（1 to 60 min, customizable）;
4P: Press briefly the "▲" or " ▼" to set the low-temperature standby temperature (-50℃ to 0℃);
Briefly press the "E" to confirm entering into the "OFF" state.

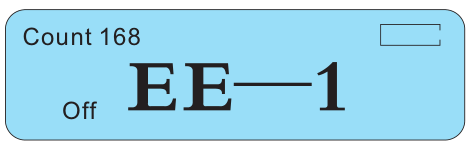

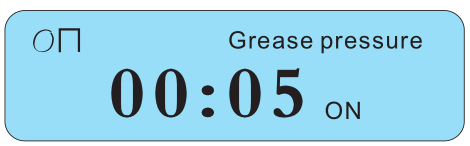

Setting Interface
1 - Off status
2 - Oil quantity pulse not detected during operation
3 - Oil quantity pulse detected during operation
4 - Low-temperature standby
5 - Low level early warning status
6 - Low level early warning status
7 - Alarm due to lack of grease
(Alarm sends and the machine will be shut down after 6 consecutive operations, the alarm will be automatically acknowledged after the tank is fully filled)
8 - Alarm due to insufficient filling
(It has no influence on system operation. Fault will be automatically cleared at the time of next normal operation)
Special Attention!
This monitor is designed with function against misoperation
