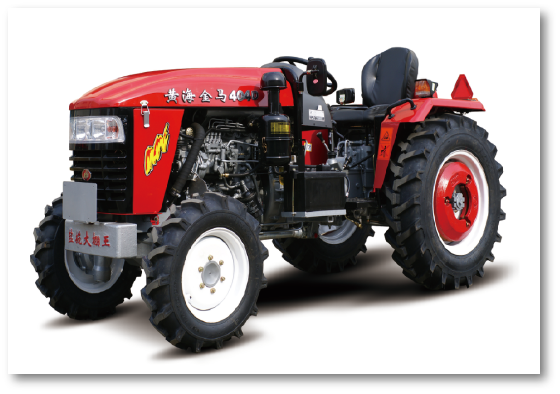

JM404D Jinma D-Type Tractor For Greenhouse Planting And Garden Management
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.The engine is Direct drive
- 2.Two/four wheel drive, 8 gear transmission
- 3.Perfect in performance of Hydraulic suspension system
- 4.Single - side braking system and standard single/double speed power output
- 5.There are both Mechanical or hydraulic steering system
- JM404D
Jiangsu Yueda Investment Co., Ltd
Since:
1985
Product Description
| Tractor Parameters | Model | JM404D | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H(mm): | 2920x1240x1230 | ||
| Wheel Track (mm) | Front | 1000 | |
| Rear | 1010 | ||
| Wheel Bass(mm) | 1825 | ||
| Ground Clearance (mm) | 240 | ||
| Rated Traction Force(N) | 5600 | ||
| Construction Mass(kg) | 1140 | ||
| Min.Turning Radius(m) | |||
| Theoretical Speed (km/h) | Forward | 1.40，2.14，3.35，4.62，6.49，9.88，15.5，21.3 | |
| Reverse | 1.84，8.92 | ||
| Engine Specifications | Model | JD4B4 | |
| Type | 4-cylinder, Vertical,water cooled, 4 stroke cycle | ||
| Rated Power(kw/hp) | 29.4/40 | ||
| Rated Speed (rpm) | 2300 | ||
| Bore×Stroke (mm) | 90×100 | ||
| Total Displacement(L) | 2.55 | ||
| Drive System | Clutch | 9" Single-Stage | |
| Gear Box | (4+1)×2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmission | Spur Gear,External,Gearing | ||
| Traveling Mechanism | Type | Front | 5.00-12 |
| Rear | 9.5-16 | ||
| Steering Gear | Full Hydraulic Steering | ||
| Brake | Shoe type | ||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 6600 |
| 3-Point Suspension | Category:I | ||
| P.T.O Shaft | Rotating Speed (rpm) | 720 | |
| Spline Size | 6-Φ35Rectangular Spline | ||
