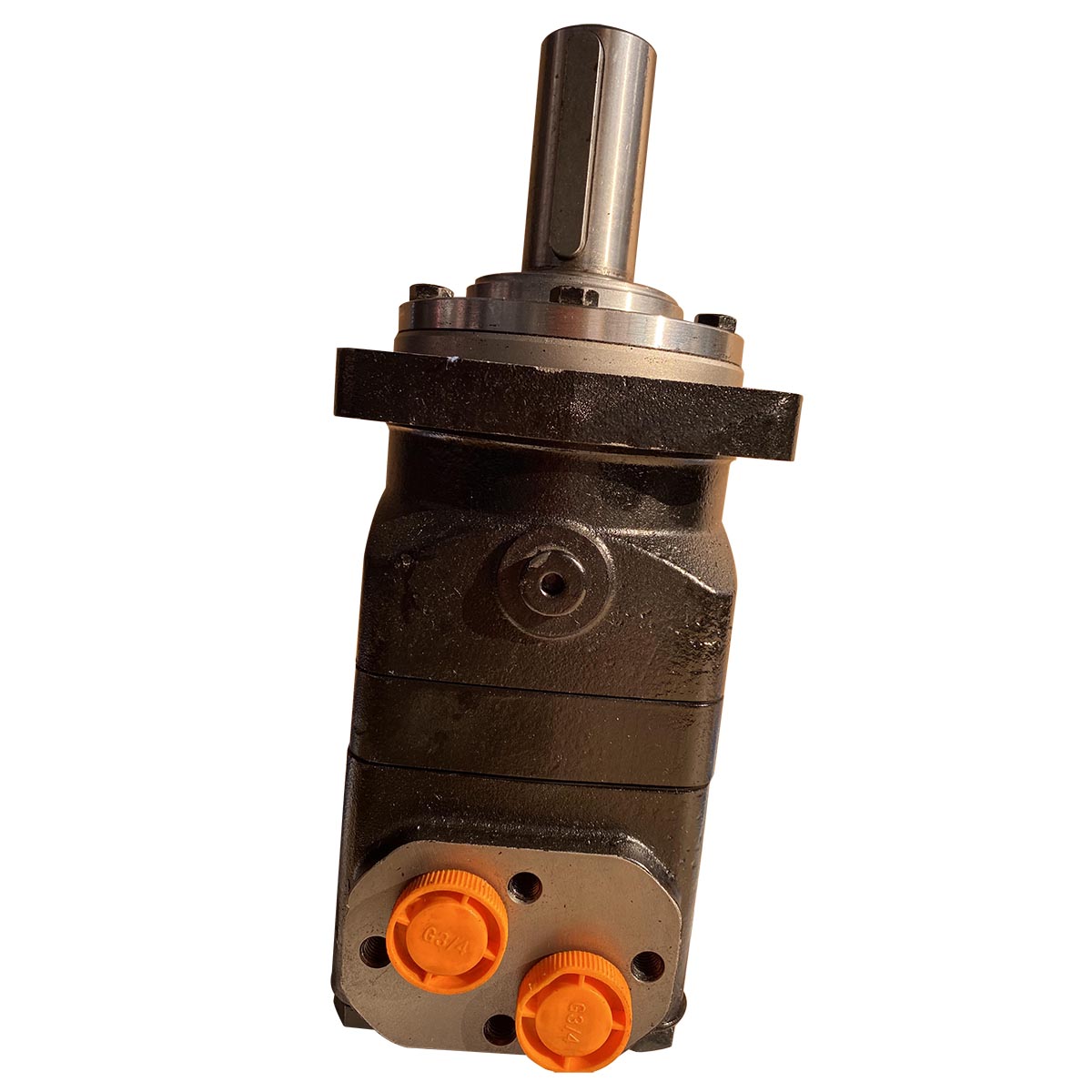

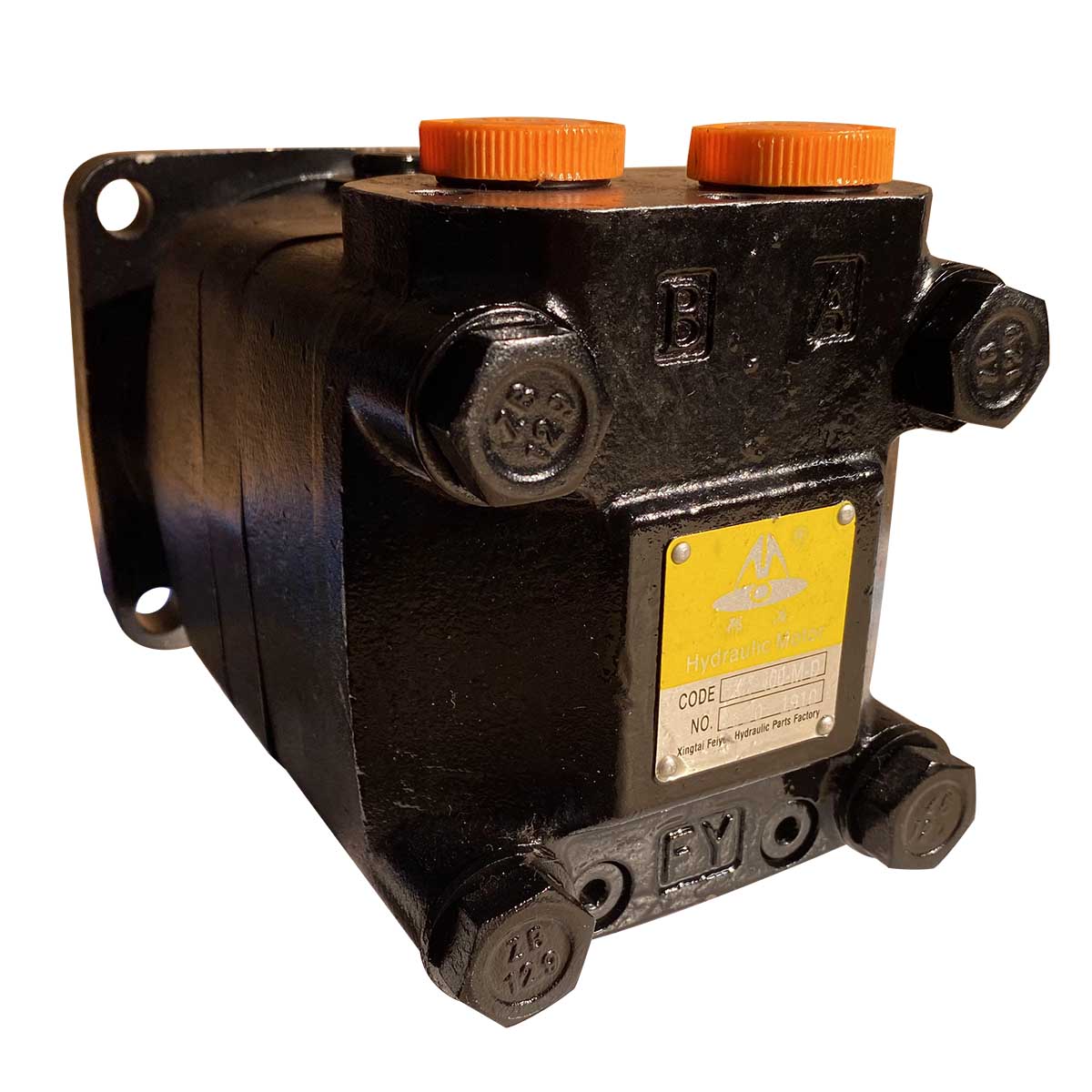

Hydraulic Orbital Motor BMT OMT for Danfoss 200 CCM

Hydraulic Orbital Motor BMT OMT for Danfoss 200 CCM

Score

Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

1. Advanced manufacturing devices for the geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
2. Advanced design in distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

More Products Share Factory

Consult Immediately Batch Inquiry

XINGTAI FEIYUE HYDRAULIC PARTS FACTORY

Since:

1985

Double taper roller bearings permit high radial loads, can be used on heavy vehicles/machinery in traction drive applicationsOMT/BMT series orbital hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers etc.

Ordering Information

Product NO

Displacement
(CCM)

Mounting

Flange(MM)

Shaft
(MM)

Port Size

Drain Port

Shaft

end thread

Mounting holes

Oil

Port shape

Parallel

key

width（MM）

BMT/OMT

160

125/127

G3/4

G1/4

BMT Main Specification

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement(cm3/rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max.speed (rpm)	Rated	470	475	412	381	294	228	183	150	121
	Continuous	625	625	536	500	380	305	240	196	154
	Intermittent	780	750	643	600	460	365	285	233	185
Max.torque(N.m)	Rated	379	471	530	582	758	896	1063	1156	1207
	Continuous	470	590	670	730	950	1080	1220	1318	1464
	Intermittent	560	710	821	880	1140	1260	1370	1498	1520
	Peak value	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max.output(KW)	Rated	18.7	23.4	23.2	23.2	23.2	21.4	20.4	18.2	15.3
	Continuous	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
	Intermittent	32	40	40	40	40	35	35	27.5	26.8
Max.pressure difference(Mpa)	Rated	16	16	16	16	16	15	14	12	10.5
	Continuous	20	20	20	20	20	18	16	14	12.5
	Intermittent	24	24	24	24	24	21	18	16	13
	Peak value	28	28	28	28	28	24	21	19	16
Max.inlet(L/min)	Rated	80	100	100	100	100	100	100	100	100
	Continuous	100	125	125	125	125	125	125	125	125
	Intermittent	125	150	150	150	150	150	150	150	150
Max.inlet pressure(MPa)	Rated	21	21	21	21	21	21	21	21	21
	Continuous	21	21	21	21	21	21	21	21	21
	Intermittent	25	25	25	25	25	25	25	25	25
	Peak value	30	30	30	30	30	30	30	30	30
Weight(Kg)		19.5	20	20.4	20.5	21	22	23	24	25
