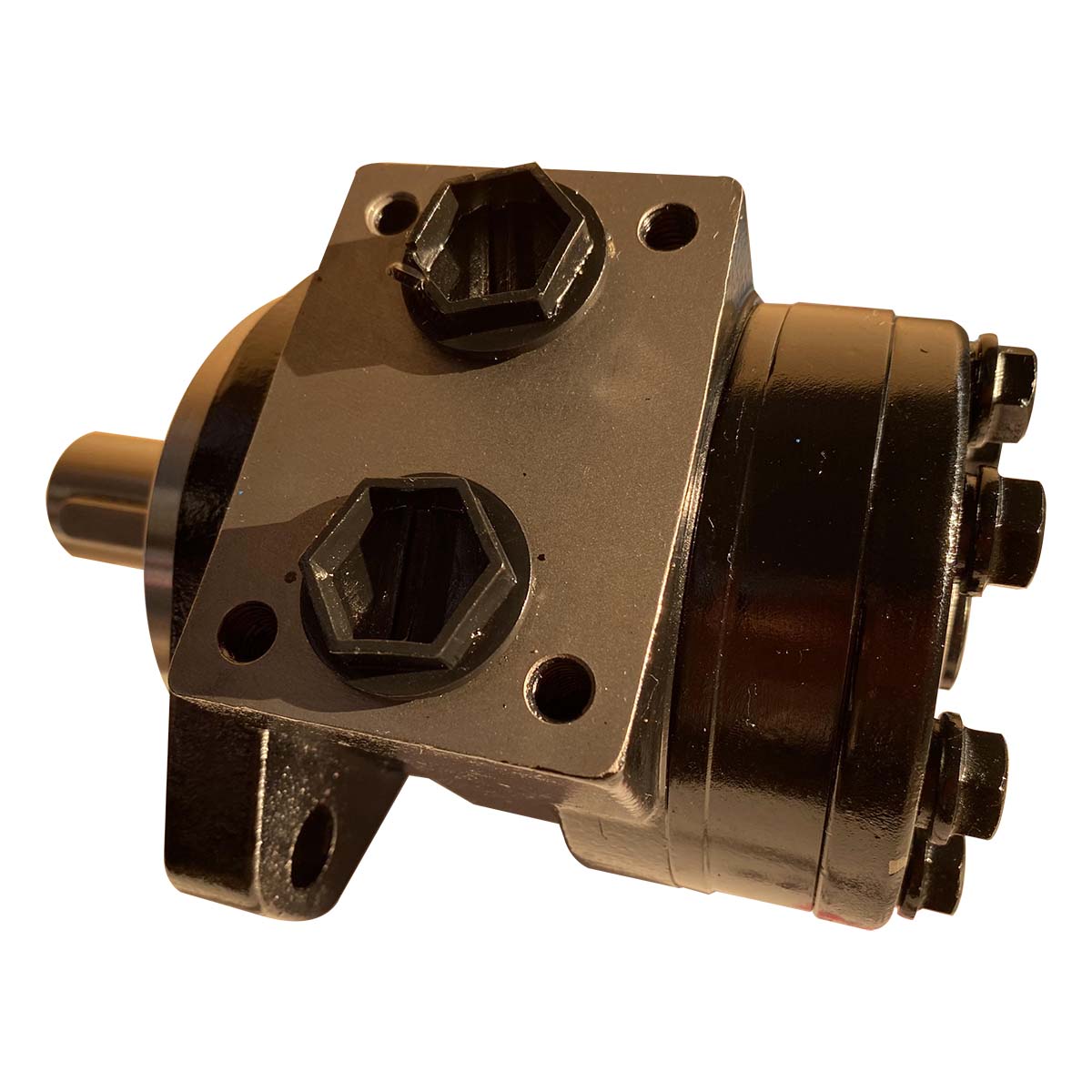

Hydraulic Motor OZ series 315CCM for Danfoss
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1. Compact design, which provide small volume,high power and low weight.
- 2. Credible design,for shaft seal,which can bear high pressure and be used in parallel or in series.
- 3. Direction of shaft rotation and speed can be controlled easily and smoothly.
- 4. Best combination of efficiency and economy in medium load applications
- 5. Advanced manufacturing devices for the Gerotor gear set, high efficiency and long life.
- 160CCM
XINGTAI FEIYUE HYDRAULIC PARTS FACTORY
Since:
1985
Product Description
Hydraulic Motor OZ series 315CCM for Danfoss
Ordering Information
| Product NO | Displacement(CCM) | Mounting Flange(MM) | Shaft(MM) | Port Size | Drain Port | Shaft end thread | Mounting holes | Oil Port shape | Parallel key width（MM） |
| OZ | 315 | 82.5 | 25 | G1/2 | G1/4 | M8 | 2 | S | 8 |
Characteristic Features
1.Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
2.Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
3.Advanced construction design, high power and low weight.
| TYPE | OZ 36 | OZ 50 | OZ 80 | OZ 100 | OZ 125 | OZ 160 | OZ 200 | OZ 250 | OZ 315 | OZ 400 | |
| Displacement(ml/r) | 37 | 51.7 | 77.7 | 96.2 | 117.90 | 155.50 | 189.90 | 231 | 311.70 | 386.20 | |
Flow (LPM) | Continuous | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Speed (RPM) | Continuous | 1081 | 774 | 515 | 416 | 339 | 257 | 211 | 173 | 128 | 104 |
Output (KW) | Continuous | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 4.6 | 3.4 | 3.4 |
| Intermittent | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 7 | 5.8 | 5.8 | |
Pressure (MPA) | Continuous | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 9 | 7 | 7 |
| Intermittent | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 11.5 | 10.5 | 10.5 | |
Torque (N*.m) | Continuous | 51 | 73 | 106 | 140 | 162 | 216 | 264 | 281 | 312 | 392 |
| Intermittent | 68 | 96 | 143 | 178 | 218 | 288 | 351 | 351 | 433 | 582 | |
| Intermittent operation:the permisssiblevalues may occur for max.10% of every minute | |||||||||||
Usage Guide:
1. OZ Series motors are designed as low speed high torque and low weight type motors.
2. A simultaneous max,speed and max.pressure is not recommended.
3. Can be used in parallel or in series.Case drain line is necessary when back pressure is over 5 Mpa.
4. The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation.
5. Make sure the motor is always filled with oil before operating.
6. Max.operating temperature:80℃.
7.Recommended fluid:Anti-wear type of hydraulic oil.Viscosity recommended 37-73cst.Filtration:ISO19/16.
Product list :fei yue catalogue 2021
