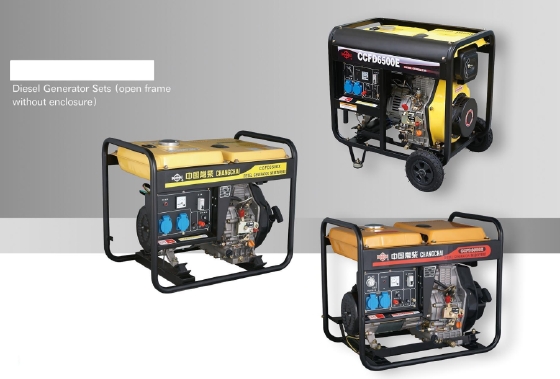

Diesel Generator Sets Open Frame Without Enclosure
MOQ: 2 PCS
Note: If you have any questions,please contact us
- 1.Unit performance stable and reliable,stable speed adjustment.
- 2.Low fuel consumption,low emissions,good economic performance.
- 3.Safe and suitable for standby power stations in any region.
- 4.The gen-sets are durable,compact and easy for operation.
- CCFD3500X CCFD3500E
- CCFD5000X CCFD6500E
- CCFD6500X CCFD6500E
- CCFD8500X CCFD8500E
Changchai Co., Ltd
Since:
1913
Product Description
Specifications of Diesel Generator Sets (open frame without enclosure)
| Model Item | CCFD3500X CCFD3500E | CCFD5000X CCFD6500E | CCFD6500X CCFD6500E | CCFD8500X CCFD8500E | ||||||
| Gen-setts | Phase | Single phase | ||||||||
| Excitation | self-extraction | |||||||||
| Voltage Regulation System | Automatic Voltage Regulation | |||||||||
| Frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | ||
| Rated Power(kW) | 2.8 | 3.3 | 4.2 | 5 | 4.5 | 5 | 4.5 | 5 | ||
| Rated Voltage (V) | 230 | 240 | 230 | 240 | 230 | 240 | 230 | 240 | ||
| Rated Current (A) | 12.2 | 13.8 | 18.3 | 20.8 | 19.6 | 20.8 | 19.6 | 20.8 | ||
| Speed(rmp) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | ||
| Power Factor | 1 | |||||||||
| Fuel Tank Capacity | 15 | |||||||||
| Net Weight (Kg) | X:72,E:77 | X:108;E:113 | X:125;E:130 | |||||||
| Overall Dimensions [LXWXH](mm) | 680x460x625 | 720x480x605 | 770x728x795 | |||||||
| Power solution | Engine Model | 178FA | 186FA | 192FA | ||||||
| Type | Single cylinder inline , 4-Stroke, Air cooled, Direction injection | |||||||||
| Output | Rated Power (KW) | 3.7 | 4 | 5.7 | 6.3 | 7.5 | 8.2 | |||
| Max. Power (KW) | 4 | 4.4 | 6.3 | 6.6 | 8 | 8.6 | ||||
| Bore x Stroke (mm) | 78x64 | 86x72 | 92x75 | |||||||
| Displacement (cc) | 305 | 418 | 499 | |||||||
| Lubricate Tank Capacity(L) | 11 | 1.65 | ||||||||
Application:
Widely used in construction,machinery, ship manufacturing, aerospace,railways industry, etc.and also for individual users.
