FrançaisCBHYG-G-F Double Gear Pump
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.The fore pump and hind pumps are made of high-strength wear-resistant cast iron with strong bearing capacity
- 2.Adopt asymmetrical dual modulus shaping gears to effectively reduce noise
- 3.The combination of two different modulus oil pumps is suitable for the combination of large and small displacement
- 4.Axial clearance automatic compensation mechanism, so that the oil pump can maintain high volumetric efficiency for a long time
- 5.The connection form of the inlet and outlet ports is composed of a combination of thread and flange
- CBHYG-G/F
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
You May Also Like
Product Description
Double Gear Pump Outline Dimension
Specification（Roation: Left）
| Model | Nominal Displacement (mL/r) fore pump /central pump | Pressure Fore pump/hind pump | Speed (r/min) | Volumetric Efficiency (≥%)fore pump central pump /hind pump | L1 | L2 | Weight (kg) | ||||
| Rated | Max. | Min. | Rated | Max. | |||||||
| CBHYG-G25/F3.5-ATΦ* | 25/3.5 | 25/20 | 28/25 | 600 | 2000 | 3000 | 92/90
| 107 | 165.5 | 186.5 | 7.3 |
| CBHYG-G25/F4.5-ATΦ* | 25/4.5 | 167.3 | 188 | 7.3 | |||||||
| CBHYG-G28.2/F3.5-ATΦ* | 28.2/3.5 | 110 | 168.3 | 189.5 | 7.4 | ||||||
| CBHYG-G28.2/F4.5-ATΦ* | 28.2/4.5 | 170.3 | 191 | 7.4 | |||||||
| CBHYG-G32/F3.5-ATΦ* | 32/3.5 | 114 | 172.3 | 193.5 | 7.6 | ||||||
| CBHYG-G32/F4.5-ATΦ* | 32/4.5 | 174.3 | 195 | 7.6 | |||||||
| CBHYG-G32/F5.5-ATΦ* | 32/5.5 | 176.8 | 197.5 | 7.6 | |||||||
| CBHYG-G32/F3.5-ATΦ* | 32/3.5 | 118 | 176.3 | 197.5 | 7.8 | ||||||
| CBHYG-G36/F4.5-ATΦ* | 36/4.5 | 178.3 | 199 | 7.8 | |||||||

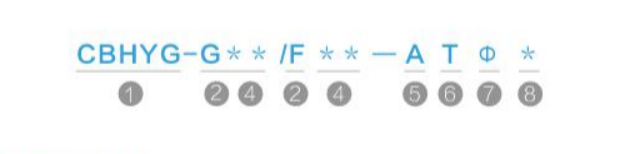

Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
