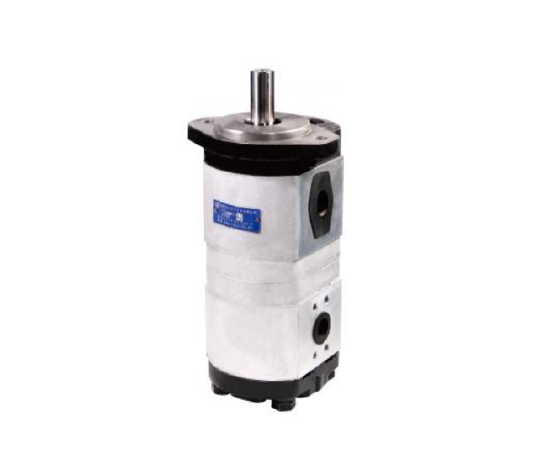

CBHLD-F5-F5 Double Gear Pump
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.High-strength aluminum alloy shell, front and rear covers are made of cast iron
- 2.Symmetrical double lubrication environmental protection sliding bearing structure
- 3.The connection forms of the inlet and outlet ports are available with thread, flange, etc.
- 4.Input shaft coupling can choose flat key, rectangular spline
- 5.Axial clearance automatic compensation mechanism, so that the oil pump can maintain high volumetric efficiency for a long time
- 6.High working pressure and wide speed range
- 7.High volumetric efficiency can be maintained at 600rpm
- CBHLD-F5/F5
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
CBHLD-F5-F5 Double Gear Pump Outline Dimension
Specification（Roation: Right）
| Model | Nominal displacement (mL/r) fore pump/hind pump | Pressure Fore pump/hind pump | Speed (r/min) | Volumetric Efficiency (≥%)fore pump/hind pump | L1 | L2 | L | Inlet fore pump/hind pump | Outlet fore pump /hind pump | weight | |||
| Rated | Max. | Min. | Rated | Max. | |||||||||
| CBHLD-F520/F520-*FH* | 20/20 | 20/20
| 25/25
| 600 | 2500 | 3000 | 93/93 | 75.5 | 206.5 | 286 | 25/25 | 20/20 | 15 |
| CBHLD-F525/F525-*FH* | 25/25 | 77.5 | 212.5 | 294 | 16 | ||||||||
| CBHLD-F525/F520-*FH* | 25/20 | 210.5 | 290 | 13.5 | |||||||||
| CBHLD-F532/F532-*FH* | 32/32 | 80.5 | 221.5 | 306 | 30/30 | 20/20 | 15.4 | ||||||
| CBHLD-F532/F525-*FH* | 32/25 | 218.5 | 300 | 30/25 | 16.7 | ||||||||
| CBHLD-F532/F520-*FH* | 32/20 | 216.5 | 296 | 16.2 | |||||||||
| CBHLD-F540/F540-*FH* | 40/40 | 83.5 | 230.5 | 318 | 35/35 | 20/20 | 19 | ||||||
| CBHLD-F540/F532-*FH* | 40/32 | 227.5 | 312 | 35/30 | 18.2 | ||||||||
| CBHLD-F540/F525-*FH* | 40/25 | 224.5 | 306 | 35/35 | 17.5 | ||||||||
| CBHLD-F540/F520-*FH* | 40/20 | 222.5 | 302 | 17 | |||||||||
| CBHLD-F550/F532-*FH* | 50/32 | 87.5 | 235.5 | 320 | 35/30 | 25/20 | 19.2 | ||||||
| CBHLD-F550/F525-*FH* | 50/25 | 232.5 | 314 | 35/25 | 18.5 | ||||||||
| CBHLD-F550/F520-*FH* | 50/20 | 230.5 | 310 | 18 | |||||||||
| CBHLD-F563F532-*FH* | 63/32 | 93 | 246.5 | 331 | 35/30 | 25/20 | 20.5 | ||||||
| CBHLD-F563/F525-*FH* | 63/25 | 243.5 | 325 | 35/25 | 19.8 | ||||||||
| CBHLD-F563/F520-*FH* | 63/20 | 241.5 | 321 | 19.3 | |||||||||
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
