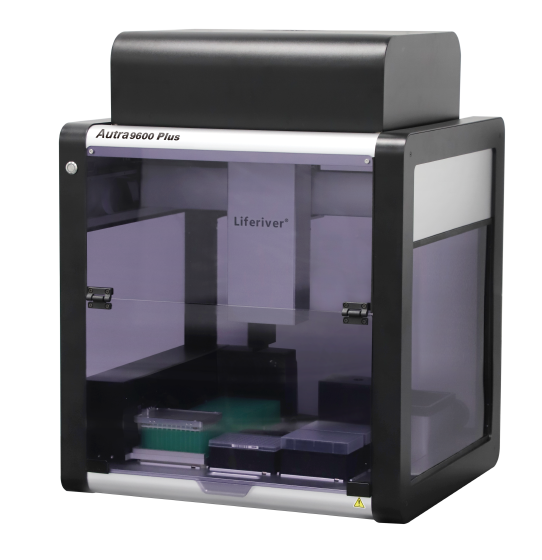

Autra 9600 Plus Automated Workstation For Nucleic Acid & PCR Setup
MOQ: 1 Set
Note: If you have any questions,please contact us
- 1. Fast extraction：Pr-loaded plate with nucleic acid extraction reagent, extraction of 96 specimens in 10 minutes
- 2. Automated Pipetting ：Transfer of purified nucleic acids into 96 wells in 5 minutes Reduced manual operations and improved efficiency
- 3. Effective decontamination: Built- in UV lamp to disinfect the inside of the workstation
- 4. HEPA filter to absorb aerosol ; Bio-safety and little risk of cross-contamination
- 5. Small and space economical: minimal dimensions so as to save space
Shanghai ZJ Bio-Tech Co., Ltd
Since:
2005
Product Description
System Principle:
The principle underlying magnetic bead procedures involves negatively-charged
nucleic acids binding to magnetic beads reversibly,washing and elution.
Adsorption:Nucleic acids from sample are binded to the magnetic beads
Washing:Non nucleic acid components are removed
Elution Purified nucleic acids are released into the elution buffer
Performance
1. precision
Repeated extraction and detection results of the same specimen for 20 times(concentration:300 copies/mL
2. linearity
Extraction and detection result of the same specimen of different concentrations(concentrations: E7/E6/E5/E4/E3 Copies/mL)
Technical Specifications
| Parameter | Specifications |
| Model# | Autra 9600 plus |
| Function | Automated nucleic acid extraction and PCR setup |
| Throughput | 1-96 specimens |
| processing Volume | 100-500 |
| Running time(full plate) | 28min/run |
| 96-deep-well plate | 1 strip |
| Extraction Method | magnetic beads |
| Vortex Mix | Mode&speed adjustable |
| Contamination prevention | Built-in UV lamp, independent outbound air path with HEPA filterable to absorb nucleic fragments |
| Magnetic bead recycle rate | 0.95 |
| pipetting channel | 8 |
| Pipetting Accuracy | 1μ(%CV±5%)10μ(%CV±1%),20μ(%CV±0.8%) |
| Dimension(L*W*H) | 630mm*570mm*850mm |
| Weight | 45kg |
| power | AC100V-240V(±10%);60hz |
| power consumption | 200VA |
| Environmental condition | Temperature:10-40 Humidity:<85% |
Compatible Consumables
| Cat | Product | specifications |
| ME-0092-96/384 | Viral RAN Extraction kit(for Auto-Extraction) | 96/384 reactions/kit |
| OCH0411 | Compatible pipettor | 96 tips/rack, 10 racks/set |
| OCH0412 | 0.5mL Screw Cap Microtubes | 50 tubes/bag |
