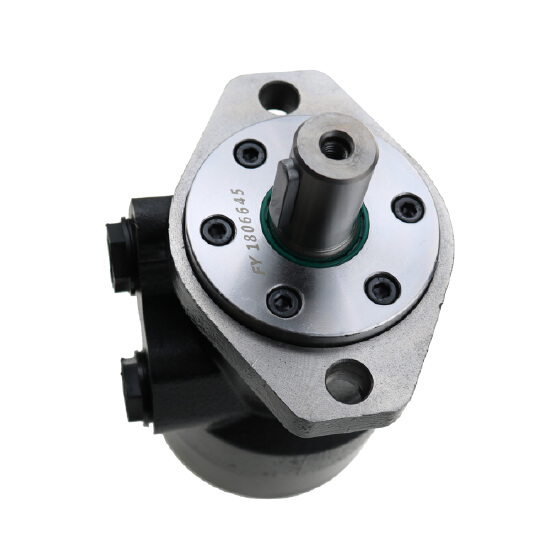

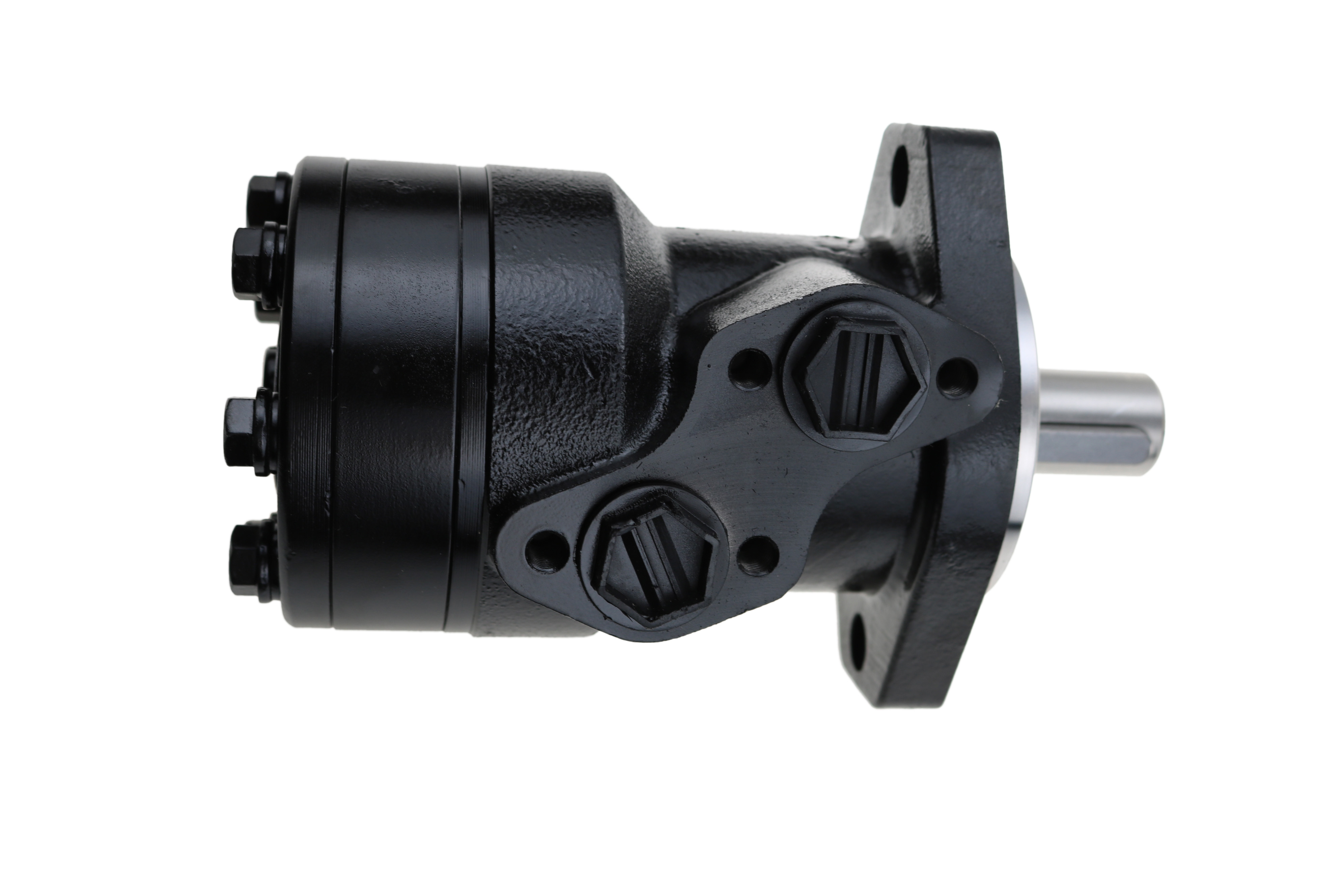

Danfoss bm2 OMR series 2 Bolt mounting flange, G1 / 2 NPT Port Hydraulic Motor Replacement
MOQ: 100 PC
Notas: Si tiene alguna pregunta, por favor póngase en contacto con nosotros.
Xingtai feiyue Hydraulic parts factory
Desde:
1985
Descripción del producto
replacement for Danfoss BMR/OMR series Hydraulic Motor
1.Double needle bearing can bear higher radial force,with more Concentricity that can help smooth running under the high speed condition;
2.Shaft seal can bear high pressure of back and the motot can be used in parallel or in series;
3.High quality oil seal lead to longer service life;
4.Special design in the driver-linker and prolong operating life;
5.Special design for distribution system can meet the requirement of low noise of unit;
6. Shaft diameter 25mm; parallel key 8mm ;G1/4 Drain Port Thread ; 82.5mm Mounting Flange;
7.Hydraulic applications :Construction Machinery , Agriculture Machinery ,Heavy-Duty Equipment ,Forestry Machinery ,Mining Equipment.
BMR Main Specification
TYPE | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | BM2 | |
OMR | OMR | OMR | OMR | OMR | OMR | OMR | OMR | OMR | OMR | OMR | ||
Displacement(ml/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | |
Flow (LPM) | Continuous | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Intermittent | 50 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Speed (RPM) | Continuous | 755 | 630 | 750 | 600 | 475 | 375 | 300 | 240 | 190 | 160 | 110 |
Intermittent | 970 | 790 | 940 | 750 | 600 | 470 | 375 | 300 | 240 | 200 | 128 | |
Pressure (MPA) | Continuous | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 8.5 | 8.5 | 8 |
Intermittent | 17.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 14 | 11.5 | 11.5 | 9 | |
Torque (N*.m) | Continuous | 100 | 124 | 190 | 240 | 292 | 363 | 358 | 352 | 360 | 420 | 464 |
Intermittent | 126 | 156 | 220 | 280 | 340 | 430 | 448 | 470 | 470 | 548 | 580 | |
1. Continuous pressure:Max.value of operating motor continuously. | ||||||||||||
2.Intermittent pressure:Max.value of operating motor in 6 seconds per minute . | ||||||||||||
3.Peak pressure:Max.value of operating motor in 0.6 second per minute. | ||||||||||||
4.The optimum operating situation should be at the 1/3-2/3 of the continuous operating situation. |
Replace DANFOSS No
151B-3100 | 151B-2150 | 151B-3105 | 151B-2155 | 151B-3110 | 151B-2183 | 151B-2188 | 151B-3115 |
151B-3101 | 151B-2151 | 151B-3106 | 151B-2156 | 151B-3111 | 151B-2184 | 151B-2189 | 151B-3116 |
151B-3102 | 151B-2152 | 151B-3107 | 151B-2157 | 151B-3112 | 151B-2185 | 151B-2190 | 151B-3117 |
151B-3103 | 151B-2153 | 151B-3108 | 151B-2158 | 151B-3113 | 151B-2186 | 151B-2191 | 151B-3118 |
151B-3104 | 151B-2154 | 151B-3109 | 151B-2159 | 151B-3114 | 151B-2187 | 151B-3120 | 151B-3119 |
Replace Eaton/Char-Lynn
112-1066 | 112-1096 | 112-1090 | 112-1060 | 112-1163 | 112-1145 | 112-1107 | 112-1068 |
112-1067 | 112-1097 | 112-1091 | 112-1061 | 112-1063 | 112-1069 | 112-1099 | 112-1062 |
Replace M+S Hydraulic
MV315 | MV400 | MV500 | MV630 | MV800 |
MVS315 | MVS400 | MVS500 | MVS630 | MVS800 |
MVW315 | MVW400 | MVW500 | MVW630 | MVW800 |
MLHV315 | MLHV400 | MLHV500 | MLHV 630 | MLHV800 |
MLHVS315 | MLHVS400 | MLHVS500 | MLHVS630 | MLHVS800 |
MLHVW315 | MLHVW400 | MLHVW500 | MLHVW630 | MLHVW800 |
