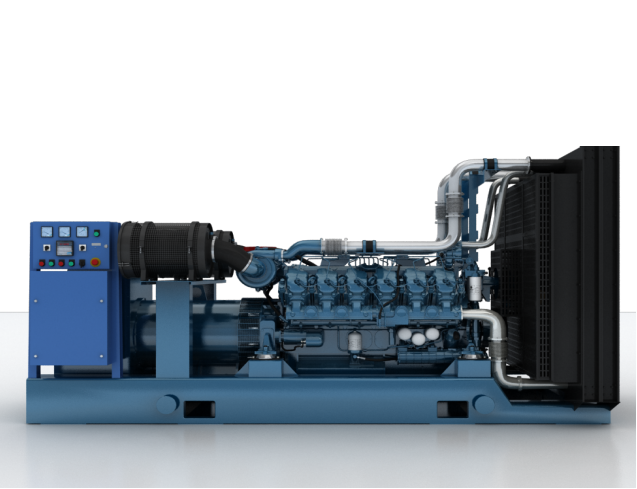

WEICHAI WPG1000B7NG Series 50Hz Gas Generator Set
MOQ: 1 PCS
Note: If you have any questions,please contact us
- High reliability, low emissions, low noise
- Have kinds of domestic product certification and CE certification
- By using electronic control technology, the emission meets the national emission standard III
- WPG1000B7NG
Weichai Power Co., Ltd.
Since:
1946
Product Description
| Gen-set Specification | |
| Model | WPG1000B7NG |
| Prime | 800kWe/ 1000kVA |
| Standby | 800kWe/ 1000kVA |
| Voltage/ Frequency | 440V/ 50Hz |
| Power Factor | 0.8- 3 Phases |
| Emission | China State 3/ EU Stage 3A |
| Noise level dB（A） | B Series: ≤102 L Series: ≤75 @7m |
| Standard Configurations | ||
| ♦ Proven ECM and gas intake system | ♦ IP23 | ♦ DeepSea 8610 Controller |
| ♦ DC24 electric starter& alternator | ♦ H type insulation | ♦ Legrand Circuit Breaker |
| ♦ Puller type fan with Radiator | ♦ Air filter& muffler | ♦ NG Shutoff valve |
| ♦ Maintenance-Free batteries w/ wires | ♦Battery Charger | ♦Oil Drain Valve |
| ♦ Forklift Groove Skid with Shock Absorber | ||
| Options | ||
| ² Automatic Main Failure (AMF) | ² paralleling system panel | ² Sound Proof Enclosure |
| ² Automatic Transfer Switch (ATS) | ² Telematics kit | ² Trailer type station |
| ² Jacket water &oil heater kit | ² LPG vapor kit | ² Spare Parts/ Special tool |
| ² H2S Purification System Packing | ² CHP System Packing | |
Engine Technical Data
Base Data Model: 12M33D900E300NG NO. of Cylinders: 12 Type: V type, 4 Stroke Aspiration： TA Cooling Method: Water Governing Type: ECM control Compression ratio: 11:1 Fuel Type: Natural Gas Emission: China State 3/ EU Stage 3A |
Displacement: 39.2L Bore/Stroke: 150/185mm Electric system: DC24V Outline Dimension： 2103×1497×1710mm Dry weight: 3390kg Prime Power: 900kW@1500rpm Standby Power: 900kW@1500rpm Rated NG Fuel Consumption: 240 m3/h Speed in Stability: |
Lubrication System Oil filter control method: Full flow type Total Oil Capacity: 146L Oil Type: CF15W/40 | Gas System Recommended Gas: Pipeline gas or natural gas (methane≥70%, sulfur content ≤20 mg/m3) Gas pressure： 3~7 kPa |
Air System Air Filter Type: Dry-type Max. Air Intake Restriction: ≤6 kPa Recommended air filter mass flow: 4400 kg/h | Exhaust System Silencer type : horizontal Silencer Noise Reduction Level: 15 dB(A) Exhaust Gas Temperature °C: ≤650 |
Cooling System Coolant Capacity: 196L |
Water pump type: Centrifugal |
Alternator Technical Data
Physical Data Manufacturer: Stamford/ Leroy-somer Model: LVI6D/LSA 49.3 L9 NO. of bearing: 1 Insulation Class: H Steady Voltage Regulation: ≤±2.5% |
Ingress Protection Rating: IP23 Winding Pitch-code: 2/3 Wire: 12 Excitation: Brushless Rated Power Factor: 0.8 |
Control Module Specifications
The DSE7320 is an Auto Mains Failure Control Module
♦ Back-lit LCD display
♦ 3 Phase generator and 3 Phase Mains monitoring
♦ Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level
♦ Display warning, shutdown and engine status information
♦ Hours counter provides accurate information for monitoring and maintenance
Gen-set Dimensions & Weights
| Length | Width | Height | Weight | |
| B-Series | 4676 mm | 2194 mm | 2410 mm | 8000 kg |
| C-Series | 20’ container | 11000 kg | ||
Remarks
Prime Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
Standby Rating: These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous tested (as defined in ISO 8528‐3).
