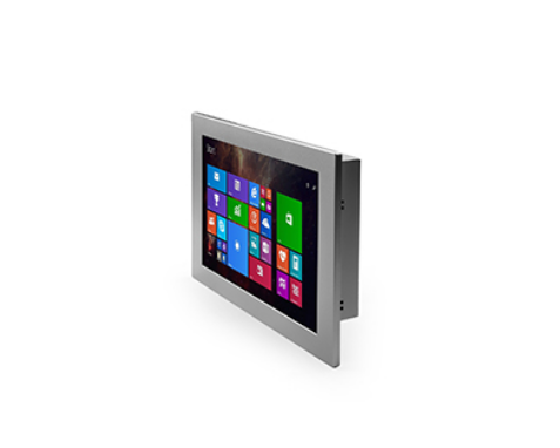

Industrial Tablet Industrial Panel PC PPC-GS1551T/PPC-GS157XTA
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 15" Resistive touch screen
- Chipset: Intel ® --Celeron J1900/3855U/3865U/Core I3/I5/I7
- RAM: DDR3/ DDR4 2GB,up to 16GB
- Provide 4*USB+4*COM port
- 2*1000M LAN port
- PPC-GS1551T
Shenzhen Geshem Technology Co., LTD
Since:
2008
Product Description
Performance
Chipset: Intel® Celeron J1900/3855U/3865U/Core I3/I5/I7
RAM: J1900 Standard 2GB DDR3, up to 8GB, 3855U/3865U/Core i3/i5/i7 Standard 2GB DDR4, up to 16GB
Hardware Monitor: Monitors voltage, CPU, TEMP
Watchdog Timer: 0-255 sec by software
Storage: SSD 64GB up to 512GB
.png)
Power
Power Supply: 9-24V DC(9-36V optional)
O/S
O/S: Windows 10、Linux (J1900 support Win7)
I/O Port
USB: J1900: 3*USB2.0+1*USB3.0, 3855U/3865U/Core 6th/7th: 4*USB 3.0
COM: 4*RS232 (1~2*RS485/RS422 optional)
Ethernet: 2*1000M LAN
Audio: 1*Line-out+1*Mic
Display: 1*VGA, 1*HDMI
MiniPCIe: 1*MiniPCIe(optional WIFI/3G/4G)
GPIO: 1*4 in/4 out(optional, occupy one COM port)
.png)
Environmental
Anti-vibration: 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration
Anti-shock: 10g acceleration, 11ms duration
IP Level: Front panel IP65(optional)
Reliability: MTBF≥5000h; MTTR≤0.5h
Operating Temperature: -10℃～50℃ with air flow
Storage Temperature: -20℃～60℃
Operating Humidity: 95% @40℃, non-condensing
Mechanical
Dimensions: 380mm(L)*300mm(W)*59mm(H)
Mounting size: VESA mounting: 100*100mm; Embedded mounting: 352*232mm
Material: Fanless High-strength and elegant Al-alloy panel
Weight: 5.2kg/6.8kg(NET/Gross)
Color: Silver
.png)
