Home
> Agriculture Equipment & Parts> Agriculture Equipment> Tractor > Farm Tractor Crown C Series CFC350

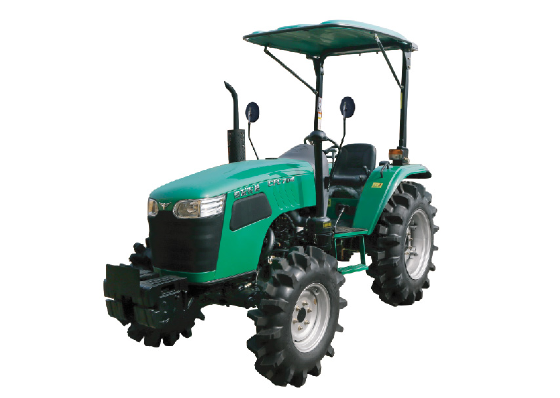

Farm Tractor Crown C Series CFC350
MOQ: 1 PCS
Note: If you have any questions,please contact us
- 1.Utilized in plowing, rotary tillage and transportation.
- 2.Strong power, high ground clearance.
- 3.Adjustable wheel track.
- 4.New type fuel filter
- 5.Optional device: Belt driving power take-off device.
- CFC350
Jiangsu Changfa Agricultural Equipment Holding Co.,Ltd
Since:
2003
Product Description
1. Changfa Crown A series tractor (horsepower ranging from 25 to 50) adopts 9F plus 3R side shift.
2. New design, Luxury model with beautiful appearance and works perfectly in both muddy field and dry land, meeting the demand of ploughing, rotary tilling and transporting work.
3. Large volume rotational tank gives long time running, Safety Frame, Sunshade and Drivers Cab
| model： | CFC350 |
| Engine model | CF4B35T |
| Engine type： | In-line、Water-cooled、 Four-stroke、Direct Injection |
| Engine Rated Output (KW)： | 25.8 |
| Rated Speed (r/min)： | 2400 |
| Dimension（L×W×H）(mm)： | 3504×1485×2237 |
| Wheel Base (mm)： | 1808 |
| Front Wheel Track(mm)： | 1250～1550（Usually 1250） |
| Rear Wheel Track(mm)： | Step Adjustable：1100～1400（Usually 1200），Optional Stepless Adjustable：1100～1640（Usually 1200） |
| Minimum Ground Clearance (mm)： | 332 |
| Rated Traction (kN)： | 7.5 |
| Tire Size(Front Wheel) (inch)： | 5.00-15 |
| Tire Size (Rear Wheel) (inch)： | 11.2-24 |
| Minimum Using Weight (kg)： | 1590 |
| Clutch： | Dry Type、Single Disk、Constant Engaged、Double-action |
| Gearbox： | 8 Forward Gears + 8 Backward Gears， |
| Type of Brakes： | Oil Bath、Double-disk、 Mechanically Controled |
| Driving Speed (km/h)： | Forward 2.21～26.42 Backward 2.06～24.69 |
| The Maximum Lifting Force at the Low Suspension Point of 610mm (kN)： | 8.5 |
| PTO Speed (r/min)： | 540/760，Optional: 540/1000 or 760/1000 |
