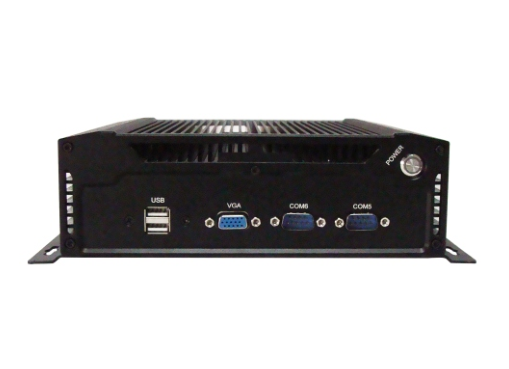

Fanless IPC Fanless Sealed Design Industrial Personal Computer PC-GS507XA/PC-GS5052A
Fanless IPC Fanless Sealed Design Industrial Personal Computer PC-GS507XA/PC-GS5052A

Fanless IPC Fanless Sealed Design Industrial Personal Computer PC-GS507XA/PC-GS5052A

Score
Sold: 0 Question And Answer 0

MOQ: 100 PCS

Note: If you have any questions,please contact us

  • Intel ® Celeron J1900 3855U/3865U/Core i3/i5/i7 processor
  • 6*USB+6*COM port
  • 2*Intel I211 LAN
  • Dual display 1*VGA+1*HDMI
  • Fanless sealed /Anti-dust design
  • PC-GS507XA
More Products Share Factory
Consult Immediately Batch Inquiry
Shenzhen Geshem Technology Co., LTD

Shenzhen Geshem Technology Co., LTD

Since:

2008

You May Also Like

Product Description

Performance

Chipset: Intel Celeron J1900/3855U/3865U/Core I3/I5/I7

RAM: J1900: 2GB DDR3, Max 8GB; 3855U/3865U/Core: 2GB DDR4, Max 16GB

Hardware Monitor: Voltage CPU, Temperature Monitoring

Watchdog Timer: 0-255 sec by software

Storage: SSD: Standard 64GB, Max 512GB



Power

Power Supply: 9-24V DC(12V/5A adapter,9-36V optional)



O/S

O/S: Windows 10、Linux(J1900 also support Win 7)



I/O Port

USB: J1900: 5*USB2.0+1*USB3.0; Core 6th/7th : 4*USB 3.0+2*USB 2.0

COM: 6*RS232(1-2*RS485/422 optional)

Ethernet: 2*Intel 1000Mbps

Audio: 1*Line-out+1*Mic-in

Display: 1*VGA +1*HDMI

Expansion: 1*Mini PCIe(WIFI/BT/3G/4G optional)





Environmental

Anti-vibration: 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration

Anti-shock: 10g acceleration, 11ms duration

IP Level: IP65

Reliability: MTBF≥5000h; MTTR≤0.5h

Operating Temperature: -20℃～70℃ with air flow

Storage Temperature: -30℃～80℃

Operating Humidity: 95% @40℃, non-condensing



Mechanical

Dimensions: 211.5mm(L)x200mm(W)x67mm(H)

Material: High-strength and elegant Al-alloy, Fanless Design

Weight: 2.6Kg/4.0Kg(NET/Gross)

Color: Black
