Fanless IPC Fanless Sealed Design Industrial Personal Computer PC-GS507XA-4P
MOQ: 100 PCS
Note: If you have any questions,please contact us
- Onboard Intel ® Celeron 3855U/3865U Core 6th /7 Gen I3/I5/I7 Processor
- 4GB DDR4, up to 16GB
- 2*USB 2.0+4*USB 3.0
- 5*Intel I211AT(4*POE-802.3af)
- Fanless High-strength and elegant Al-alloy case Design
- PC-GS507XA-4P
Shenzhen Geshem Technology Co., LTD
Since:
2008
Product Description
Performance
Chipset: Onboard Intel ® Celeron 3855U/3865U Core 6th /7 Gen I3/I5/I7 Processor
RAM: 4GB DDR4, Max 16GB
Hardware Monitor: Voltage & CPU Temperature Monitoring
Watchdog Timer: 0-255 sec by software
Storage: SSD: Standard 64GB, Max 512GB
.png)
Power
Power in: 9-36V DC(12V/5A adapter)
O/S
O/S: Windows 10、Linux(J1900 also support Win 7)

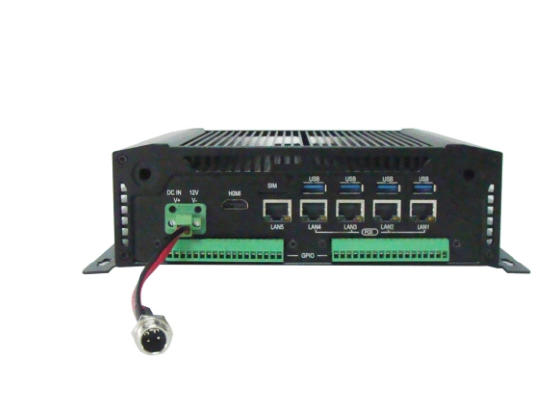

I/O Port
USB: 4*USB2.0 +2*USB 3.0
COM: 2*RS2323(RS422/RS485 optional)
Ethernet: 5*Intel 1000Mbps (4*POE)
Audio: 1*Line-out+1*Mic-in
Display: 1*VGA +1*HDMI
Expansion: 1*Mini PCIe(WIFI/BT/3G/4G optional)
GPIO: 1*16 in/out
.png)
Environmental
Anti-vibration: 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration
Anti-shock: 10g acceleration, 11ms duration
IP Level: IP65
Reliability: MTBF≥5000h; MTTR≤0.5h
Operating Temperature: -20℃～70℃ with air flow
Storage Temperature: -30℃～80℃
Operating Humidity: 95% @40℃, non-condensing
Mechanical
Dimensions: 211.5mm(L)x200mm(W)x67mm(H)
Material: High-strength and elegant Al-alloy, Fanless Design
Weight: 1.8Kg/2.3Kg(NET/Gross)
Color: Black
