Enhanced Trencher 1KJ-35K

Features:

♦ The structure is simple, reasonable and reliable

♦ Adopt first-grade spiral bevel gear drive system, strong bearing capacity

♦ The frame adopts integral welded structure with high strength;

♦ The design of the scattered soil cover of the machine is novel and unique, and the scattered soil is very uniform;

♦ Three throwing adjustment grids are installed on each side of the hood to adjust the throwing distance;

♦ Limiting devices are added on both sides of the machine to ensure the straightness of the trench and the stability of the trench depth.

♦ Can open rectangular groove and trapezoidal groove

♦ 1KJ-35K Type trencher is wider than 1KJ-35 trencher when Ditching work . It is suitable for some special agronomic requirements of need wider ditch operation.

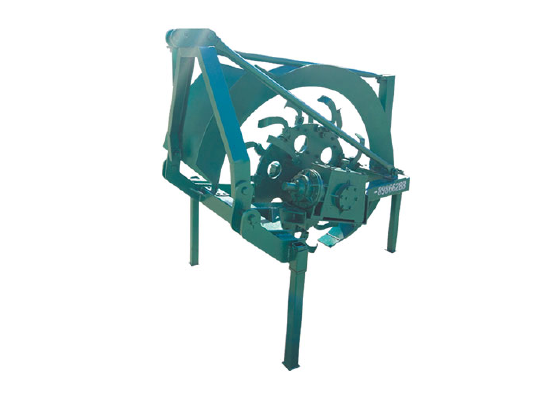

Enhanced Trencher 1KJ-35K.png

Main technical parameter table:

Name		Single circle disc trencher		Double circle disc trencher
Type		1KJ-35	1KJ-35K(Widened type)	1KJ-35A
Power(kW)		36. 7-51.5	36. 7-51.5	36. 7-51.5
Power output shaft speed (r/min)		720	720	720
Cutter plate Rotating speed (r/min)		228	228	228
Cutter plate Line speed(m/s)		11.7	11.7	11.7
productivity(m/h)		2000-3500	2000-3500	2000-3500
Ditch Depth(cm)		30-40	30-40	30-35
Ditch bottom width(cm)		10-13	12-14	12-14
Ditch surface width(cm)	rectangle	12-13	/	/
	Trapezoid	18-20	28-38	28-38
Number of cutter disc coulters		18 (Main 12/ auxiliary 6)	18 (Main 12/ auxiliary 6)	16 (8 each for left and right)
Dimensions(mm)		15007001400	15007701400	11008501300
Total Weight(kg)		290	295	305
transfer method		Single-stage gear transmission		Intermediate gear transmission
Connection way		Rear mounted Three-point suspension		Rear mounted Three-point suspension
Scope of application: Land where wheat, rape, vegetables, cotton, corn and other crops are grown
