Cultivator Is Designed To Till And Ditch The Fields WMX650A

Score

Sold: 0 Question And Answer 0

MOQ: 2 PCS

Note: If you have any questions,please contact us

1.Handle can be adjusted as required
2.Adjust Support Wheel to Suit Different Soil and Terrain
3.Powerful engine with prolonged bath oil type air filter which prevents dust and extends lifetime
4.Compact and attractive structure
5.Easy gear shifting allows convenient operation

WMX650A

More Products Share Factory

Consult Immediately Batch Inquiry

WEIMA Agricultural Machinery Co., Ltd

Since:

2003

WMX650 series of pastoral management machine is small in size, powerful, wide range of usage, and other competitive advantages. The handle can be turned up and down, left and right sides according to the operator work habits so as to achieve the best working state, it can adjust the roller height in the back to meet the requirements of different soil and different terrain.

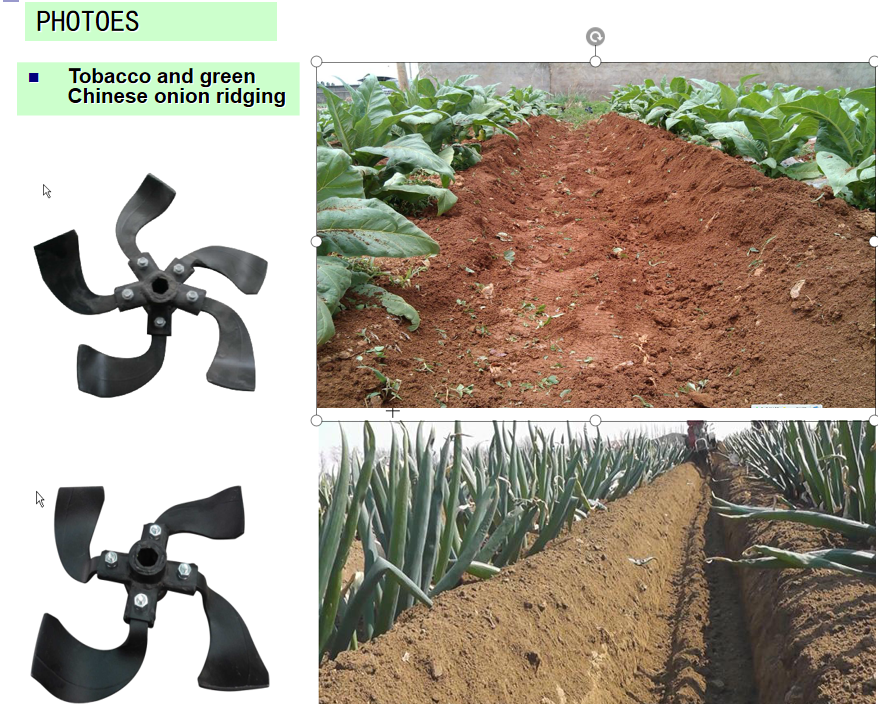

According to the differences of different crops, there are four, five, six pieces of ditching and ridging knives, and vine cane knives, which can meet most crops’ ridging and ditching needs.

Model	WMX650A
Body size (mm)	1600×750×880
Tilling scope (mm)	"ditching width：290 ～ 320 tilling width：420 ～ 650"
Tilling depth (mm)	≥ 100mm
Gear shifting	walking Gearbox：forward(H、L)、0、reverse(H、L) Tilling Gearbox : high drive ratio（H、L） low drive ratio (H、L)
Driving model	gear+chain+belt
Transmission oil capacity (L)	walking gearbox：1.5 Tilling Gearbox：1.2"
Engine model	WM177F-3/P
Max power hp (kw)rpm	9(6.0)/1800
N.W/G.W (kg)	99/109
Packaging Dimension (mm)	1280×470×820
40HQ(set)	108
Certificates
Accessories	5pcs ditching blade, 3pcs 3 group rotary blade, 1 set of 30mm iron wheel, 1 set of 3.5-5 rubber tyre
