CDC*-15 Series Multi-way Reversing Valve
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.Built-in check valve: each reversing body has a built-in check valve to prevent the oil from flowing back
- 2.Set the valve stem self-locking: prevent the forklift mast from vibration caused by the negative pressure inside the tilt cylinder
- 3.Lowering protection solenoid valve: only after opening this solenoid valve, the control of the lowering operation is effective
- 4.Additional valve: two ends of the reversing body, an overload valve or a supplement valve can be added as required
- 5.Valve body structure: chip structure, any combination within 1~10 groups
- 6.Valve stem neutral function: A, Z, O, Y, etc.
- CDC*-15
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description
Outline Dimension
Specification
| （Mpa）Nominal pressure | 20 |
| (L/min) Nominal flow rate | 65 |
| Spool stroke(mm) | 7+7 |
| Weight(kg) | 3.6+2.3n(n Is the number of commutation bodies） |

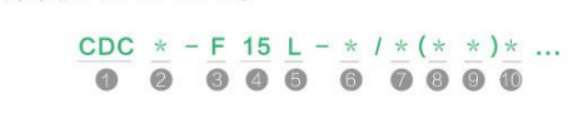

Hydraulic valves order code
① Product code
② Design code
③ Pressure grade E:16MPa F:20MPa G:25MPa H:31.5MPa
④ Nominal displacement(L/min)10 15 20 25L/min
⑤ Joining port L
⑥ Spool returning T spring W ball U hydraulic control SD Manual+Electric hydraulic control
⑦ Block No 1 spool function
⑧ A(A port with overload valve) a( A port with oil filing valve)
⑨ B: B port with overload valve b:B port with oil filing valve
⑩ Block No.1 spool function
⑪ With pressure outlet,Omit:Without pressure outlet
⑫ Solenoid valve controls voltage 24V 12V
⑬ New type front cover structure
⑭ speed limit flow rate
