CBRH Gear Pump Gear Pump Manufacturing
MOQ: 100 PCS
Note: If you have any questions,please contact us
- 1.The CBRH gear pump shell parts are made of gray cast iron with strong load-bearing capacity
- 2.CBRH gear pump using high-strength alloy steel gears, high reliability and long life
- 3.Suitable for medium with high viscosity
- 4.CBRH gear pump can be used to transport all kinds of liquids
- 5.Variety of models, can be combined arbitrarily according to the principle of module design
- CBRH
Hefei Changyuan Hydraulic Co., Ltd
Since:
1966
Product Description

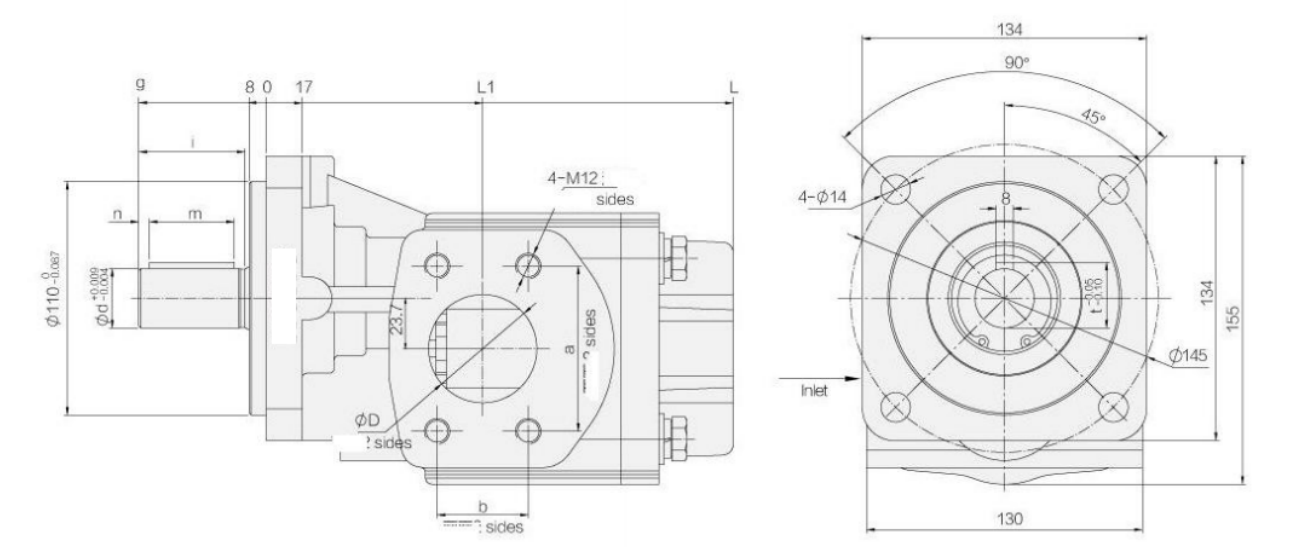

CBRH Gear Pump Outline Dimension
CBRH Gear Pump Specification（Roation: Right）
| Model | Nominal displacement (mL/r) fore pump/central pump | Pressure(Mpa) | Speed（r/min） | Volumetric Efficiency (≥%) | L1 | L | D | a | b | d | i | m | n | t | g | Weight | |||
| Rated | Max | Min | Rated | Max | |||||||||||||||
| CBRH100-BFP | 100 | 2.5 | 4 | 200 | 1450 | 3000 | 92% | 102 | 220 | 51 | 77.8 | 42.9 | 28 | 50 | 40 | 5 | 31 | 60 | 16 |
| CBRH112-BFP | 112 | 2.5 | 4 | 200 | 1450 | 3000 | 102 | 220 | 51 | 77.8 | 42.9 | 28 | 50 | 40 | 5 | 31 | 60 | 16 | |
| CBRH100-BFP1 | 100 | 2.5 | 4 | 200 | 1450 | 3000 | 102 | 220 | 51 | 77.8 | 42.9 | 24 | 36 | 28 | 4 | 27 | 46 | 16 | |
| CBRH112-BFP1 | 112 | 2.5 | 4 | 200 | 1450 | 3000 | 102 | 220 | 51 | 77.8 | 42.9 | 24 | 36 | 28 | 4 | 27 | 46 | 16 | |
| CBRH100-BF1P | 100 | 2.5 | 4 | 200 | 1450 | 3000 | 102 | 220 | 63.5 | 88.9 | 50.8 | 28 | 50 | 40 | 5 | 31 | 60 | 16 | |
| CBRH112-BF1P | 112 | 2.5 | 4 | 200 | 1450 | 3000 | 102 | 220 | 63.5 | 88.9 | 50.8 | 28 | 50 | 40 | 5 | 31 | 60 | 16 | |
| CBRH100-BF1P1 | 100 | 2.5 | 4 | 200 | 1450 | 3000 | 102 | 220 | 63.5 | 88.9 | 50.8 | 24 | 36 | 28 | 4 | 27 | 46 | 16 | |
| CBRH112-BF1P1 | 112 | 2.5 | 4 | 200 | 1450 | 3000 | 102 | 220 | 63.5 | 88.9 | 50.8 | 24 | 36 | 28 | 4 | 27 | 46 | 16 | |
Hydraulic gear pumps(motors) order code
①Product code
② Pressure grade A 1MPa B2.5MPa C 6.3MPa D 10MPa E 16MPa F 20MPa G 25MPa H 31.5MPa Some models can be omitted
③ Number of tooth 2 3 4 5 6(ome models can be omitted)
④Nominal displacement(mL/r)
⑤Mounting A Oval B Square C Rectangle T Special
⑥Joining port L Screw F Flange Special
⑦Shaft end P Plain Key H Rectangle spline Z Taper shaft woodruff X lnvolute spline φSAE SAE spline B Flat endT Special shaft end
⑧Rotation L Left R Right S bi-direction
⑨Pressure grade2 3 4
⑩ Solenoid valve function O normal open C normal close(Omited)
